Week-2

Jan 24, 2022 | 10 minutes read
Share this:

Categories: figure

Tags: barplot, JAMA, custom function, patchwork, cowplot



Second week’s figure is from a large cohort study published in JAMA.
Codes for the replica of Figure-2 will be here.

Selected article:

Title: Assessment of Clinical Criteria for Sepsis
For the Third International Consensus Definitions for Sepsis and Septic Shock (Sepsis-3)
Journal: JAMA
Authors: Seymour CW, Liu VX, Iwashyna TJ et al.
Year: 2016
PMID: 27218643
DOI: 10.1001/jama.2016.0288

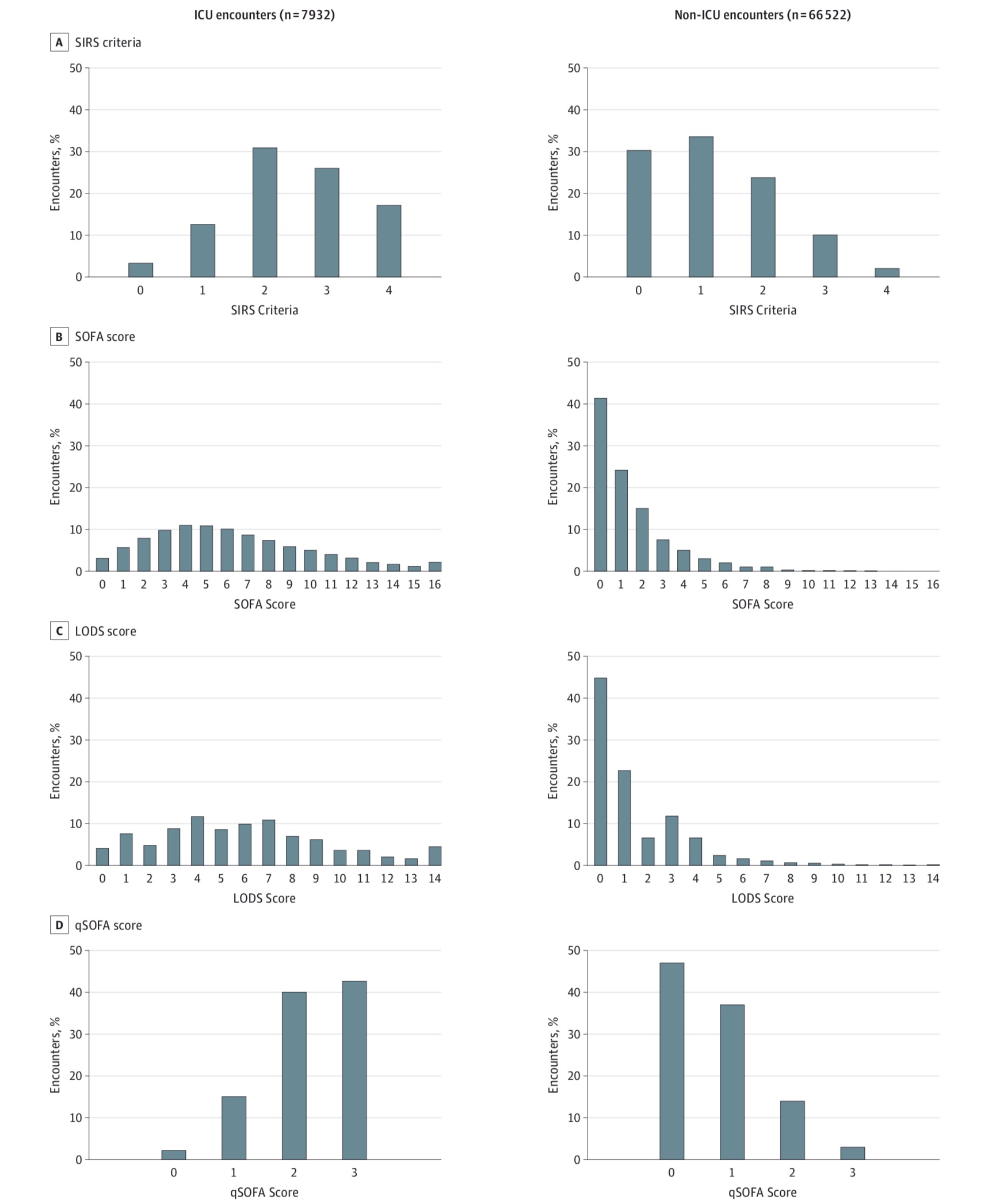

Figure-2

library(tidyverse)
library(scales)
library(fabricatr)      # to fabricate fake data
library(patchwork)      # to combine plots
library(cowplot)        # to combine plots
library(ggsci)          # for using JAMA color palette (not needed here)

theme_set(theme_light(base_family = "Open Sans"))


set.seed(2022)
ICU <- fabricate(
  N = 7932,
  group = "ICU",
  sirs = draw_categorical(N = N,
                          prob = c(.03, .13, .31, .27, .17),
                          category_labels = as.numeric(c("0", "1", "2", "3", "4"))),
  sofa = draw_categorical(N = N,
                          prob = c(.035, .055, .075, .09, .12, .11, .10, .08, .07, .06, .05, .04, .03, .022, .018, .008, .021),
                          category_labels = as.numeric(c("0", "1", "2", "3", "4","5", "6", "7", "8", "9","10", "11", "12", "13", "14", "15", "16"))),
  lods = draw_categorical(N = N,
                          prob = c(.035, .075, .050, .09, .12, .08, .10, .11, .07, .06, .03, .03, .015, .012, .055),
                          category_labels = as.numeric(c("0", "1", "2", "3", "4","5", "6", "7", "8", "9","10", "11", "12", "13", "14"))),
  qsofa = draw_categorical(N = N,
                          prob = c(.02, .15, .40, .43),
                          category_labels = as.numeric(c("0", "1", "2", "3")))) %>%
  as_tibble()


set.seed(2022)
non_ICU <- fabricate(
  N = 66522,
  group = "non_ICU",
  sirs = draw_categorical(N = N,
                          prob = c(.31, .34, .23, .10, .03),
                          category_labels = as.numeric(c("0", "1", "2", "3", "4"))),
  sofa = draw_categorical(N = N,
                          prob = c(.42, .24, .16, .08, .05, .03, .02, .018, .018, .005, .003, .002, .001, .001, .0001, .0001, .0001),
                          category_labels = as.numeric(c("0", "1", "2", "3", "4","5", "6", "7", "8", "9","10", "11", "12", "13", "14", "15", "16"))),
  lods = draw_categorical(N = N,
                          prob = c(.45, .23, .07, .13, .07, .03, .02, .015, .010, .008, .006, .005, .004, .002, .004),
                          category_labels = as.numeric(c("0", "1", "2", "3", "4","5", "6", "7", "8", "9","10", "11", "12", "13", "14"))),
  qsofa = draw_categorical(N = N,
                          prob = c(.48, .38, .14, .04),
                          category_labels = as.numeric(c("0", "1", "2", "3")))) %>%
  as_tibble()



combined_dataset <-  bind_rows(ICU, non_ICU) %>%
  mutate (patient_id = paste0("P_", row_number())) %>%
  select(patient_id, everything(), -ID)

Possible strategy: I personally prefer using one plot with facets, but using same text in every y-axis in the original figure may be difficult (although it does not make sense.)

Therefore, I chose making 8 different plots, combined them 4 + 4 with individual titles, then, combined them into one final plot.
There are two ways to do this.

  1. using one custom function to make 8 plots
  2. making 8 different plots with separate codes.

a. eight plots with one single custom function (recommended)

score_plot <- function(study_group, score_name){                   # Because there is only one dataset, I did not add .df as an argument.

label <- case_when(score_name == "sirs" ~ "SIRS Criteria",  # labels are to use in x-axis and subtitles.
                   score_name == "sofa" ~ "SOFA Score",
                   score_name == "lods" ~ "LODS Score",
                   score_name == "qsofa" ~ "qSOFA Score")

max_score <- max(combined_dataset[score_name])              # to use in x-axis scaling because all scales are different.

plot <- combined_dataset %>%
  filter(group == study_group) %>%
  group_by(.data[[score_name]]) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n), 3)) %>%
  ggplot(aes(.data[[score_name]], perc)) +
  geom_col(fill = "#6A8994", color = "black", width = .4) +
  scale_y_continuous(expand = c(0, 0), limits = c(0, 50)) +
  scale_x_continuous(breaks = seq(0, max_score, 1)) +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 10, color = "black", family = "Open Sans SemiBold"),
        axis.title = element_text(family = "Open Sans SemiBold"),
        axis.title.y = element_text(vjust = 1.5),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        plot.subtitle = element_text(vjust = 3, hjust = -0.03, family = "Open Sans SemiBold")) +
   labs(x = label,
        y = "Encounters, %\n",
        subtitle = paste0(label, "\n"))


plot_with_limits <-                                       # sirs and qsofa plots have empty cols area on both side.
  if(score_name %in% c("sirs", "qsofa")) {
    plot +
      expand_limits(x=c(-1, max_score+1))
  }
else {
  plot
}
if(study_group == "ICU"){                                 # I only used subtitle for left-side plots.
  plot_with_limits
}
else{
  plot_with_limits +
    labs(subtitle = "\n",
         y = "\n\n\nEncounters, %\n")                     # not the best way but I sometimes use to increase the space between plots.
}}


# DRAW plots by using custom function (not mandatory, we may go with {patchwork} step)
sirs_1 <- score_plot("ICU", "sirs")
sofa_1 <- score_plot("ICU", "sofa")
lods_1 <- score_plot("ICU", "lods")
qsofa_1 <- score_plot("ICU", "qsofa")
sirs_2 <- score_plot("non_ICU", "sirs")
sofa_2 <- score_plot("non_ICU", "sofa")
lods_2 <- score_plot("non_ICU", "lods")
qsofa_2 <- score_plot("non_ICU", "qsofa")


p_left <- sirs_1 / sofa_1 / lods_1 / qsofa_1 +           # {patchwork} package is good enough to combine plots.
  plot_annotation(title = paste0("ICU encounters (n=", nrow(ICU),")\n"), tag_levels = "A") &
  theme(plot.title = element_text(hjust = 0.5, face = "bold", size = 11),
        plot.tag.position = c(0, 1),
        plot.tag = element_text(size = 12, hjust = 0, vjust = 1, face = "bold"))

p_right <- sirs_2 / sofa_2 / lods_2 / qsofa_2 +
  plot_annotation(title = paste0("Non-ICU encounters (n=", nrow(non_ICU),")\n"), tag_levels = NULL) &
  theme(plot.title = element_text(hjust = 0.5, face = "bold", size = 11))


final_plot <- cowplot::plot_grid (p_left, p_right)        # {cowplot} may work better in some complex situations.

# final_plot +
#   geom_rect(aes(xmin = 0.011, xmax = 0.031, ymin = 0.225, ymax = .245), color = "#787878", alpha = 0) # can be used to add a square around tags.

ggsave(final_plot,
       filename = "w2_replica.jpg",
       dpi = 150,
       width = 12,
       height = 15)

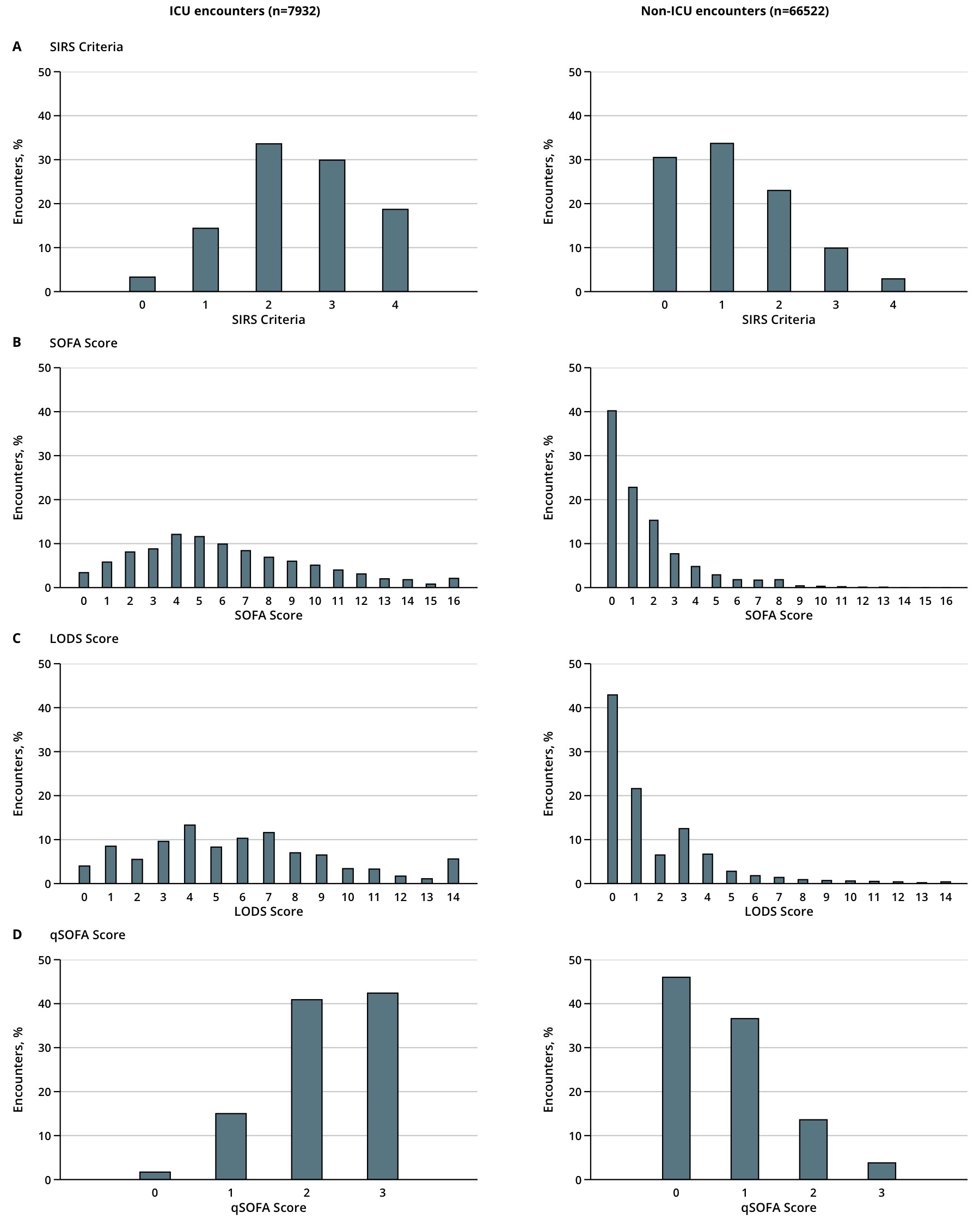

replica Figure-2

b. eight plots with separate codes (not recommended)

sirs_1 <- combined_dataset %>%
  filter(group == "ICU") %>%
  group_by(sirs) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(sirs, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .4) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "SIRS Criteria",
       y = "Encounters, %",
       subtitle = "SIRS criteria\n") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        plot.subtitle = element_text(hjust = -0.04)) +
  expand_limits(x=c(-1, 5)) +
  scale_x_continuous(breaks = seq(0, 4, 1))


sirs_2 <- combined_dataset %>%
  filter(group == "non_ICU") %>%
  group_by(sirs) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(sirs, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .4) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "SIRS Criteria",
       y = "\n\n\nEncounters, %") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black")) +
  expand_limits(x=c(-1, 5)) +
  scale_x_continuous(breaks = seq(0, 4, 1))


sofa_1 <- combined_dataset %>%
  filter(group == "ICU") %>%
  group_by(sofa) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(sofa, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .5) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "SOFA Score",
       y = "Encounters, %",
       subtitle = "SOFA score\n") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        plot.subtitle = element_text(hjust = -0.04)) +
  scale_x_continuous(breaks = seq(0, 16, 1))


sofa_2 <- combined_dataset %>%
  filter(group == "non_ICU") %>%
 group_by(sofa) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(sofa, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .5) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "SOFA Score",
       y = "\n\n\nEncounters, %") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black")) +
  scale_x_continuous(breaks = seq(0, 16, 1)) +
  expand_limits(x=c(0, 16))


lods_1 <- combined_dataset %>%
  filter(group == "ICU") %>%
  group_by(lods) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(lods, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .5) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "LODS Score",
       y = "Encounters, %",
       subtitle = "LODS score\n") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        plot.subtitle = element_text(hjust = -0.04)) +
  scale_x_continuous(breaks = seq(0, 14, 1))


lods_2 <- combined_dataset %>%
  filter(group == "non_ICU") %>%
  group_by(lods) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(lods, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .5) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "LODS Score",
       y = "\n\n\nEncounters, %") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black")) +
  scale_x_continuous(breaks = seq(0, 14, 1))


qsofa_1 <- combined_dataset %>%
  filter(group == "ICU") %>%
  group_by(qsofa) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(qsofa, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .4) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "qSOFA Score",
       y = "Encounters, %",
       subtitle = "qSOFA score\n") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        plot.subtitle = element_text(hjust = -0.04)) +
  expand_limits(x=c(-1, 4)) +
  scale_x_continuous(breaks = seq(0, 3, 1))


qsofa_2 <- combined_dataset %>%
  filter(group == "non_ICU") %>%
  group_by(qsofa) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3)) %>%
  ggplot(aes(qsofa, perc)) +
  geom_col(fill = "#6A8994", color="black", width = .4) +
  scale_y_continuous(expand = c(0,0), limits = c(0, 50)) +
  labs(x = "qSOFA Score",
       y = "\n\n\nEncounters, %") +
  theme(axis.ticks.x = element_blank(),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.ticks.length=unit(.20, "cm"),
        axis.text = element_text(size = 12, color = "black"),
        # axis.title = element_text(size = 12, color = "black"),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black")) +
  expand_limits(x=c(-1, 4)) +
  scale_x_continuous(breaks = seq(0, 3, 1))


# then eight plots can be combined with the similar approach.

c. one plot with facets (good for personal use)

group_names <- as_labeller(c(
  "ICU" = " ",
  "non_ICU" = " ",
  "sirs" = "SIRS Criteria",
  "sofa" ="SOFA Score",
  "lods" = "LODS Score",
  "qsofa" = "qSOFA Score"
))


faceted_plot <- combined_dataset %>%
  pivot_longer(cols = sirs:qsofa,
               names_to = "score_name",
               values_to = "value") %>%
  group_by(group, score_name = as_factor(score_name), value) %>%
  summarise (n=n()) %>%
  mutate(perc = 100 * round(n/sum(n),3),
         score_name = fct_relevel(score_name, c("sirs", "sofa", "lods", "qsofa"))) %>%
  ggplot(aes(value, perc)) +
  geom_col(fill = "#6A8994", position = position_dodge2(preserve = "single")) +
  facet_wrap(score_name ~ group, scales = "free", ncol = 2, strip.position = "bottom", labeller = group_names) +
  scale_y_continuous(limits = c(0,50), expand = c(0, 0)) +
  scale_x_continuous(breaks = seq(0,16,1)) +
  theme_minimal() +
  labs(x = "",
       y = "Encounters, %\n") +
  theme(panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.y = element_line(color = "lightgray", size = .5),
        panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        strip.placement	= "outside",
        plot.margin=unit(c(2,0.2,0.2,0.2),"cm"),
        plot.subtitle = element_text(hjust = .5, face = "bold"))
# then, titles and subtitles can be added.

None for now.


Citation

For attribution, please cite this work as

Ali Guner (Jan 24, 2022) Week-2. Retrieved from https://datavizmed.com/blog/2022-01-24-week-2/

BibTeX citation

@misc{ 2022-week-2,
 author = { Ali Guner },
 title = { Week-2 },
 url = { https://datavizmed.com/blog/2022-01-24-week-2/ },
 year = { 2022 }
 updated = { Jan 24, 2022 }
}

comments powered by Disqus
