Week-6

Feb 21, 2022 | 9 minutes read
Share this:

Categories: figure

Tags: boxplot, jittered points, p-value, log-scale



Selected article:

Title: Iterative Cytoreduction and Hyperthermic Intraperitoneal Chemotherapy for Recurrent Mucinous Adenocarcinoma of the Appendix
Journal: Annals of Surgical Oncology
Authors: Lopez-Ramirez F, Gushchin V, Sittig M, et al.
Year: 2022
PMID: 35133518
DOI: 10.1245/s10434-021-11233-1

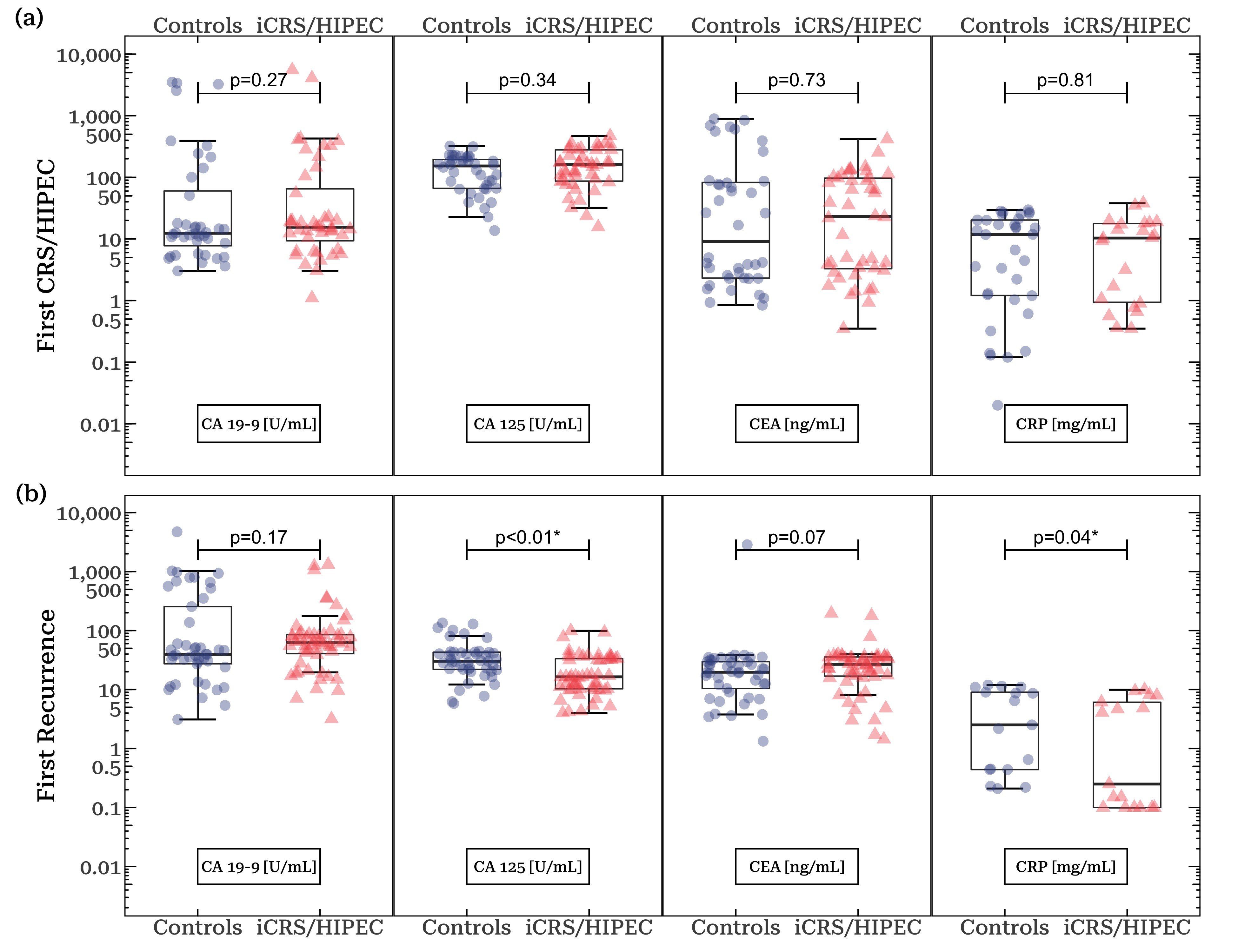

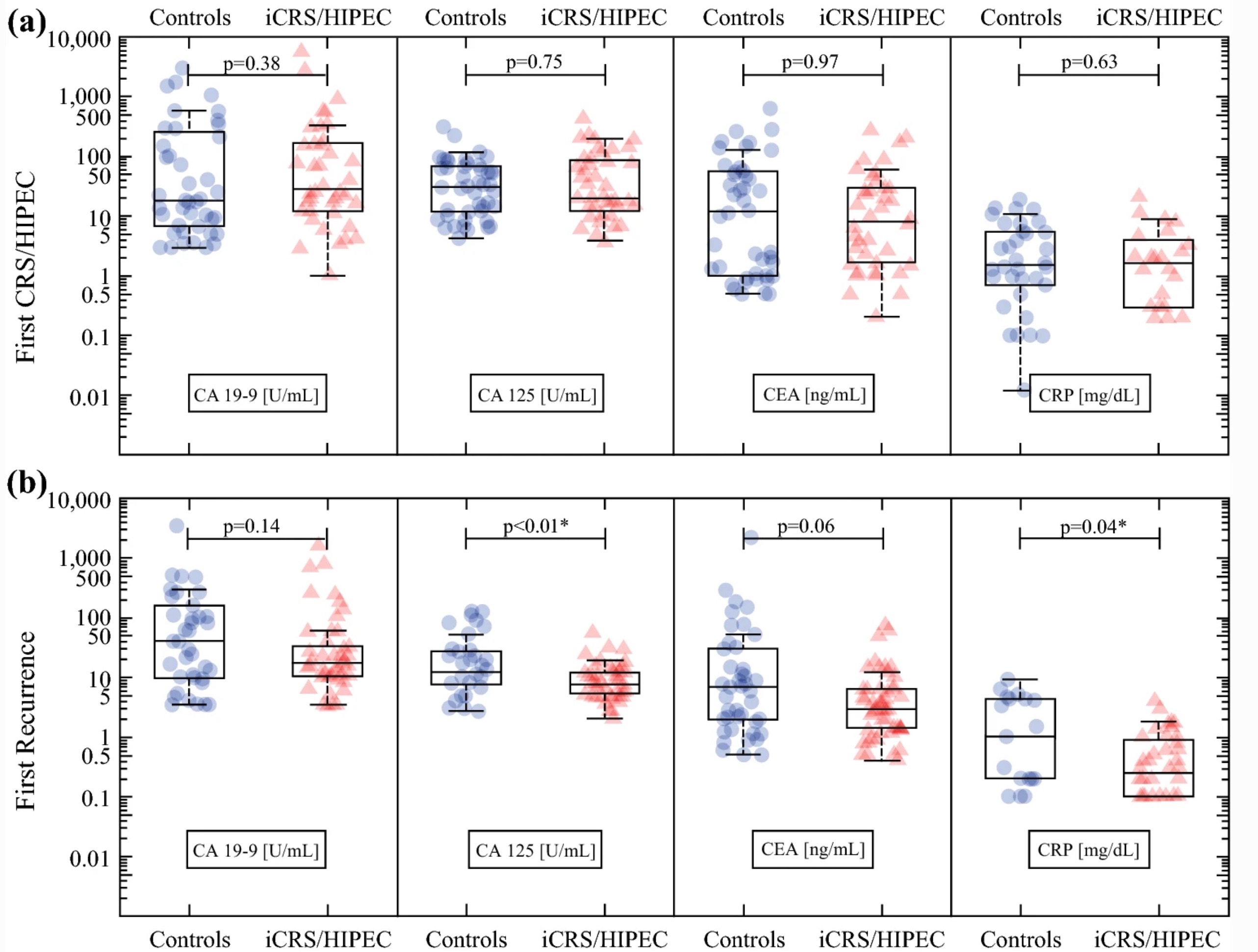

Figure 1


suppressPackageStartupMessages(library(tidyverse))
suppressPackageStartupMessages(library(scales))
suppressPackageStartupMessages(library(cowplot))
suppressPackageStartupMessages(library(ggtext))

theme_set(theme_light(base_family = "Roboto Serif 28pt Medium"))


# First CRS/HIPEC
## number of patients: 40 (34-22) vs. 44 patients
set.seed(2022)
first_control_aca199 <-as_tibble(c(round(runif(29, min = 3, max = 18),2),
                         round(runif(7, min = 18, max = 500),2),
                         round(runif(4, min = 800, max = 4000),2))) %>%
  rename(first_control_aca199 = value)

first_control_ca125 <- as_tibble(c(round(runif(15, min = 4, max = 100),2),
                                   round(runif(23, min = 100, max = 250),2),
                         round(runif(2, min = 250, max = 400),2))) %>%
  rename(first_control_ca125 = value)

first_control_cea <- as_tibble(c(round(runif(20, min = .5, max = 5),2),
                         round(runif(12, min = 10, max = 90),2),
                         round(runif(8, min = 100, max = 1000),2))) %>%
  rename(first_control_cea = value)

first_control_crp <- as_tibble(c(.02, .13, .15, .14, .12, .32, .61, 1.2, 1.3,
                         round(runif(25, min = .7, max = 30),2),
                         rep(NA_real_, 6))) %>%
  rename(first_control_crp = value)

set.seed(2022)
first_hipec_aca199 <- as_tibble(c(1.1, round(runif(31, min = 3, max = 23),2),
                         round(runif(10, min = 23, max = 500),2),
                         round(runif(2, min = 1000, max = 8000),2))) %>%
  rename(first_hipec_aca199 = value)

first_hipec_ca125 <- as_tibble(c(round(runif(30, min = 4, max = 200),2),
                                 round(runif(13, min = 200, max = 400),2),
                         round(runif(1, min = 450, max = 700),2))) %>%
  rename(first_hipec_ca125 = value)

first_hipec_cea <- as_tibble(c(.35, round(runif(18, min = .5, max = 5),2),
                         round(runif(22, min = 10, max = 150),2),
                         round(runif(3, min = 15, max = 500),2))) %>%
  rename(first_hipec_cea = value)

first_hipec_crp <- as_tibble(c(.35, .36, 38, .56, .66, .77, .9,
                         round(runif(14, min = .7, max = 20),2), 35,
                         rep(NA_real_, 22))) %>%
  rename(first_hipec_crp = value)

first_control <- bind_cols(first_control_aca199, first_control_ca125, first_control_cea, first_control_crp) %>%
  add_column(group = "control") %>%
  rename_with(str_remove, contains("_control_"), "control_")

first_hipec <- bind_cols(first_hipec_aca199, first_hipec_ca125, first_hipec_cea, first_hipec_crp)%>%
  add_column(group = "hipec") %>%
  rename_with(str_remove, contains("_hipec_"), "hipec_")

binded_first <- bind_rows(first_control, first_hipec)
###------

# Recurrence
## number of patients: 45 (17-32) vs. 55 patients
set.seed(2022)
recurrence_control_aca199 <-as_tibble(c(round(runif(32, min = 3, max = 60),2),
                         round(runif(12, min = 60, max = 1200),2),
                         round(runif(1, min = 3000, max = 5000),2))) %>%
  rename(recurrence_control_aca199 = value)

recurrence_control_ca125 <- as_tibble(c(round(runif(38, min = 3, max = 50),2),
                         round(runif(7, min = 70, max = 150),2))) %>%
  rename(recurrence_control_ca125 = value)

recurrence_control_cea <- as_tibble(c(round(runif(34, min = 1, max = 30),2),
                         round(runif(10, min = 30, max = 40),2),
                         round(runif(1, min = 2000, max = 3000),2))) %>%
  rename(recurrence_control_cea = value)

recurrence_control_crp <- as_tibble(c(.21, .23, .22, .44, .44, .45, .65,
                         round(runif(10, min = 2, max = 12),2),
                         rep(NA_real_, 28))) %>%
  rename(recurrence_control_crp = value)

set.seed(2022)
recurrence_hipec_aca199 <- as_tibble(c(round(runif(45, min = 3, max = 100),2),
                         round(runif(7, min = 50, max = 400),2),
                         round(runif(3, min = 800, max = 1500),2))) %>%
  rename(recurrence_hipec_aca199 = value)

recurrence_hipec_ca125 <- as_tibble(c(round(runif(35, min = 3, max = 20),2),
                                      round(runif(16, min = 30, max = 40),2),
                         round(runif(4, min = 40, max = 100),2))) %>%
  rename(recurrence_hipec_ca125 = value)

recurrence_hipec_cea <- as_tibble(c(round(runif(52, min = 1, max = 40),2),
                         round(runif(3, min = 50, max = 200),2))) %>%
  rename(recurrence_hipec_cea = value)

recurrence_hipec_crp <- as_tibble(c(.1, .1, .1, .1, .1, .1, .15, .15, .25,
                         round(runif(8, min = 4, max = 10),2),
                         rep(NA_real_, 38))) %>%
  rename(recurrence_hipec_crp = value)

recurrence_control <- bind_cols(recurrence_control_aca199, recurrence_control_ca125, recurrence_control_cea, recurrence_control_crp) %>%
  add_column(group = "control") %>%
  rename_with(str_remove, contains("_control_"), "control_")

recurrence_hipec <- bind_cols(recurrence_hipec_aca199, recurrence_hipec_ca125, recurrence_hipec_cea, recurrence_hipec_crp)%>%
  add_column(group = "hipec") %>%
  rename_with(str_remove, contains("_hipec_"), "hipec_")

binded_recurrence <- bind_rows(recurrence_control, recurrence_hipec)


binded_first %>%
  sample_n(6)

## # A tibble: 6 × 5
##   first_aca199 first_ca125 first_cea first_crp group
##          <dbl>       <dbl>     <dbl>     <dbl> <chr>
## 1       213.         217.     264.       20.3  control
## 2        14.4        167.      97.0      NA    hipec
## 3        13.3        109.       3.08     14.2  hipec
## 4         5.74        93.9    113.       NA    hipec
## 5       407.         358.     128.       NA    hipec
## 6        19.3        174.       1.54      0.36 hipec

binded_recurrence %>%
  sample_n(6)

## # A tibble: 6 × 5
##   recurrence_aca199 recurrence_ca125 recurrence_cea recurrence_crp group
##               <dbl>            <dbl>          <dbl>          <dbl> <chr>
## 1             34               20.1           14.4            0.44 control
## 2             64.8              4.3           28.4           NA    hipec
## 3           4734.             135.          2858.            NA    control
## 4              9.86            32.5           19.4            0.22 control
## 5             17.0             10.8            4.83           4.08 hipec
## 6             49.5              7.73           7.2            0.21 control

Possible strategy:
I m still a fan of using facets for all figure.

However, for the current figure, two different is needed.
in the first one, x_axis label is in top position, in the second one, in bottom position.

Although there are packages to implement p-values automatically, I prefer adding it after manual calculation.

annotation_logticks(), which is a part of {ggplot2}, can provide log_scaled ticks for a plot. However, in a selective scaling (the most left, and the most right) in faceted plots, a custom function was used here. add_logticks() is a custom function which was provided by the great R community.


add_logticks  <- function (base = 10, sides = "bl", scaled = TRUE,
                           short = unit(0.1, "cm"), mid = unit(0.2, "cm"),  long = unit(0.3, "cm"),
                           colour = "black",  size = 0.5, linetype = 1, alpha = 1, color = NULL,
                           data =data.frame(x = NA),... )   {
  if (!is.null(color))
    colour <- color
  layer(geom = "logticks", params = list(base = base,
                                              sides = sides, scaled = scaled, short = short,
                                              mid = mid, long = long, colour = colour, size = size,
                                              linetype = linetype, alpha = alpha, ...),
        stat = "identity", data = data , mapping = NULL, inherit.aes = FALSE, position = "identity",
        show.legend = FALSE)
}

my_y_labels <- c(0, .01, .1, .5, 1, 5, 10, 50, 100, 500, "1,000", "10,000")

test_names <- as_labeller(c(
  "aca199" = "CA 19-9",
  "ca125" = "CA 125",
  "cea" = "CEA",
  "crp" = "CRP"
)) # not used because were removed, manual inside text (facet_labels) were used.

facet_labels <- data.frame(test = c("aca199", "ca125", "cea", "crp"),
                       label = c("CA 19-9 [U/mL]", "CA 125 [U/mL]", "CEA [ng/mL]", "CRP [mg/mL]"))

### First plot
stats_data_first <- binded_first %>%
   pivot_longer(first_aca199:first_crp,
               names_to = "names",
               values_to = "values") %>%
  separate(names, into = c("time", "test"), sep = "_") %>%
  group_by(test) %>%
  summarise(p_value = round(wilcox.test(values~group)$p.value, 2)) %>%
  mutate(label = if_else(p_value < .05 , paste0(p_value, "*"), as.character(p_value)),
         label_asteriks = if_else(p_value == 0, "p<0.01*", paste0("p=", as.character(label))))

p1 <- binded_first %>%
   pivot_longer(first_aca199:first_crp,
               names_to = "names",
               values_to = "values") %>%
  separate(names, into = c("time", "test"), sep = "_") %>%
  ggplot(aes(group, values)) +
  stat_boxplot(geom ="errorbar", width = .3, size=.7,  coef = 1) +
  geom_boxplot(width = .55, outlier.shape = NA,  coef = 1) +
  geom_point(position = position_jitter(seed = 2021, width = .25), aes(color = group, shape = group),  alpha = .4, size = 3.5) +
  scale_y_continuous(trans = "log10", breaks = c(0, .01, .1, .5, 1, 5, 10, 50, 100, 500, 1000, 10000),
                     limits = c(0.003,9500),
                     labels = as.character(my_y_labels)) +
  scale_color_manual(values =  c("#3D528F", "#F25858")) +
  facet_wrap(~ test,  nrow = 1, strip.position = "right") +
  add_logticks(sides="l", data = data.frame(x= NA, test = "aca199")) +
  add_logticks(sides="r", data = data.frame(x= NA, test = "crp")) +
  scale_x_discrete(position = "top", labels = c("Controls", "iCRS/HIPEC")) +
  theme(strip.text = element_blank(),
        panel.spacing = unit(0, "cm"),
        panel.border = element_rect(color = "black", size = .8),
        axis.text.x = element_text(size = 16, vjust = 1, family = "Roboto Serif 28pt Medium"),
        axis.ticks.x.top = element_line(color = "black", size = .5),
        axis.ticks.length = unit(-0.2, "cm"),
        axis.title.y = element_text(size = 18, color = "black"),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.text.y = element_text(size = 16,  family = "Roboto Serif 28pt Medium"),
        legend.position = "none",
        panel.grid = element_blank(),
        plot.margin=unit(c(0,1,0,1),"cm")) +
  labs(x = "",
       y = "First CRS/HIPEC") +
  geom_rect(xmin=1, xmax=2, ymin=-1.7, ymax=-2.3, color="black", fill="white", size = .5)+
  geom_text(data = facet_labels, aes(x = 1.5, y = .01, label = label), size = 4.1, family = "Roboto Serif 28pt Medium") +
  geom_text(data = stats_data_first, aes(x = 1.5, y = 3900, label = label_asteriks), size = 5) +
  geom_segment(aes(x=1, xend=2, y=2300, yend=2300), color="black") +
  geom_segment(aes(x=1, xend=1, y=1600, yend=3500), color="black") +
  geom_segment(aes(x=2, xend=2, y=1600, yend=3500), color="black")

### Second plot
stats_data_recurrence <- binded_recurrence %>%
   pivot_longer(recurrence_aca199:recurrence_crp,
               names_to = "names",
               values_to = "values") %>%
  separate(names, into = c("time", "test"), sep = "_") %>%
  group_by(test) %>%
  summarise(p_value = round(wilcox.test(values~group)$p.value, 2)) %>%
  mutate(label = if_else(p_value < .05 , paste0(p_value, "*"), as.character(p_value)),
         label_asteriks = if_else(p_value == 0, "p<0.01*", paste0("p=", as.character(label))))

p2 <- binded_recurrence %>%
   pivot_longer(recurrence_aca199:recurrence_crp,
               names_to = "names",
               values_to = "values") %>%
  separate(names, into = c("time", "test"), sep = "_") %>%
  ggplot(aes(group, values)) +
  stat_boxplot(geom ="errorbar", width = .3, size=.7,  coef = 1) +
  geom_boxplot(width = .55, outlier.shape = NA,  coef = 1) +
  geom_point(position = position_jitter(seed = 2021, width = .25), aes(color = group, shape = group),  alpha = .4, size = 3.5) +
  scale_y_continuous(trans = "log10", breaks = c(0, .01, .1, .5, 1, 5, 10, 50, 100, 500, 1000, 10000),
                     limits = c(0.003,9500),
                     labels = as.character(my_y_labels)) +
  scale_color_manual(values =  c("#3D528F", "#F25858")) +
  facet_wrap(~ test,  nrow = 1, strip.position = "right") +
  add_logticks(sides="l", data = data.frame(x= NA, test = "aca199")) +
  add_logticks(sides="r", data = data.frame(x= NA, test = "crp")) +
  scale_x_discrete(position = "bottom", labels = c("Controls", "iCRS/HIPEC")) +
  theme(strip.text = element_blank(),
        panel.spacing = unit(0, "cm"),
        panel.border = element_rect(color = "black", size = .8),
        axis.text.x = element_text(size = 16, vjust = 1, family = "Roboto Serif 28pt Medium"),
        axis.ticks.x.bottom = element_line(color = "black", size = .5),
        axis.ticks.length = unit(-0.2, "cm"),
        axis.title.y = element_text(size = 18, color = "black"),
        axis.ticks.y = element_line(color = "black", size = .5),
        axis.text.y = element_text(size = 16,  family = "Roboto Serif 28pt Medium"),
        legend.position = "none",
        panel.grid = element_blank(),
        plot.margin=unit(c(.5,1,0,1),"cm")) +
  labs(x = "",
       y = "First Recurrence") +
  geom_rect(xmin=1, xmax=2, ymin=-1.7, ymax=-2.3, color="black", fill="white", size = .5)+
  geom_text(data = facet_labels, aes(x = 1.5, y = .01, label = label), size = 4.1, family = "Roboto Serif 28pt Medium") +
  geom_text(data = stats_data_recurrence, aes(x = 1.5, y = 3900, label = label_asteriks), size = 5) +
  geom_segment(aes(x=1, xend=2, y=2300, yend=2300), color="black") +
  geom_segment(aes(x=1, xend=1, y=1600, yend=3500), color="black") +
  geom_segment(aes(x=2, xend=2, y=1600, yend=3500), color="black")

### Combine plots with cowplot::plot_grid
final_replica <- plot_grid(p1, p2, labels = c("(a)", "(b)"), ncol = 1, label_size = 18)

### SAVE FIGURE
ggsave(final_replica,
       file =file.path ("w6_replica.jpg"),
       dpi = 300,
       width = 13,
       height = 10)

replica Figure 1


  1. It is stated in the article that “Horizontal lines represent upper limit of normal range…”. However, there is no such lines in the figure.
  2. It is stated in the article that “Medians were compared”. However, the main parameter to compare was the disribution, not a single median values.
  3. Width of the jittered points in the original figures are different. First one is larger than the second one.
  4. I believe, there are some problems in the missing values, especially in CRP.
  5. no idea why dashed lines were used in errorbars.
  6. There are X-axis ticks on top and bottom. I used only in one side.
  7. vjust did not work in axis.text.x(). Do not know why.
  8. There was a problem for factor reordering after add_logtics(). I solved this in naming variables.
  9. Still not sure about the font. Can be updated.
  10. It would be better to use logticks in every facets. It is difficult to follow in the center.



Citation

For attribution, please cite this work as

Ali Guner (Feb 21, 2022) Week-6. Retrieved from https://datavizmed.com/blog/2022-02-21-week-6/

BibTeX citation

@misc{ 2022-week-6,
 author = { Ali Guner },
 title = { Week-6 },
 url = { https://datavizmed.com/blog/2022-02-21-week-6/ },
 year = { 2022 }
 updated = { Feb 21, 2022 }
}

comments powered by Disqus
